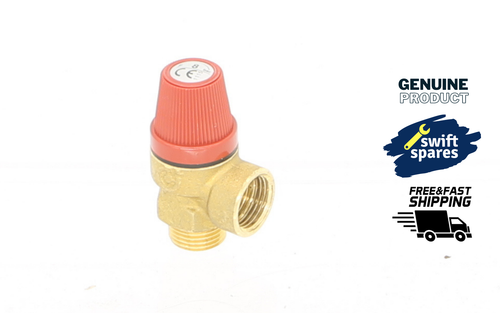

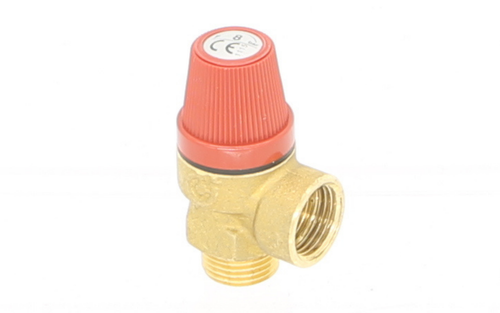

CALEFFI 312480 Safety Valve 1/2" 8 BAR - NEW
CALEFFI 312480 Safety Valve 1/2" 8 BAR - NEW
Regular price
£9.99 GBP
Regular price
Sale price
£9.99 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
8 Bar - 1/2" MBSP x 1/2" FBSP - Series 312 Safety Pressure Relief Valve
- Designed to be used in domestic hot water and heating systems
- Protects hot water cylinders and heating components
- Set pressure: 8 bar
- 1/2" male to female threaded connections
- Suitable for water (potable or not) and air
- Stainless steel spring
- WRAS Approved product
- Granted CE Mark
Size: 1/2 Inch
The Series 312 safety relief valves are used in domestic hot water systems to protect the hot water cylinder and in heating systems to protect boiler and other components. The valve is selected for the required set pressure. As the pressure rises, when the discharge pressure is reached the valve opens and discharges to atmosphere, preventing the pressure within the system reaching levels which would be dangerous for the boiler, hot water storage cylinder and any personnel in the adjacent vicinity.
Specification:
- Medium: water and air
- Temperature range: 5 to 110°C
- Set pressure: 8 bar
- Max. static pressure: 10 bar
- PED category: IV
