DANFOSS HP28B 2-PORT 28MM HPV28B VALVE FOR HPA2 ACTUATOR (BODY ONLY) 087N662400
DANFOSS HP28B 2-PORT 28MM HPV28B VALVE FOR HPA2 ACTUATOR (BODY ONLY) 087N662400
Regular price
£41.99 GBP
Regular price
Sale price
£41.99 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

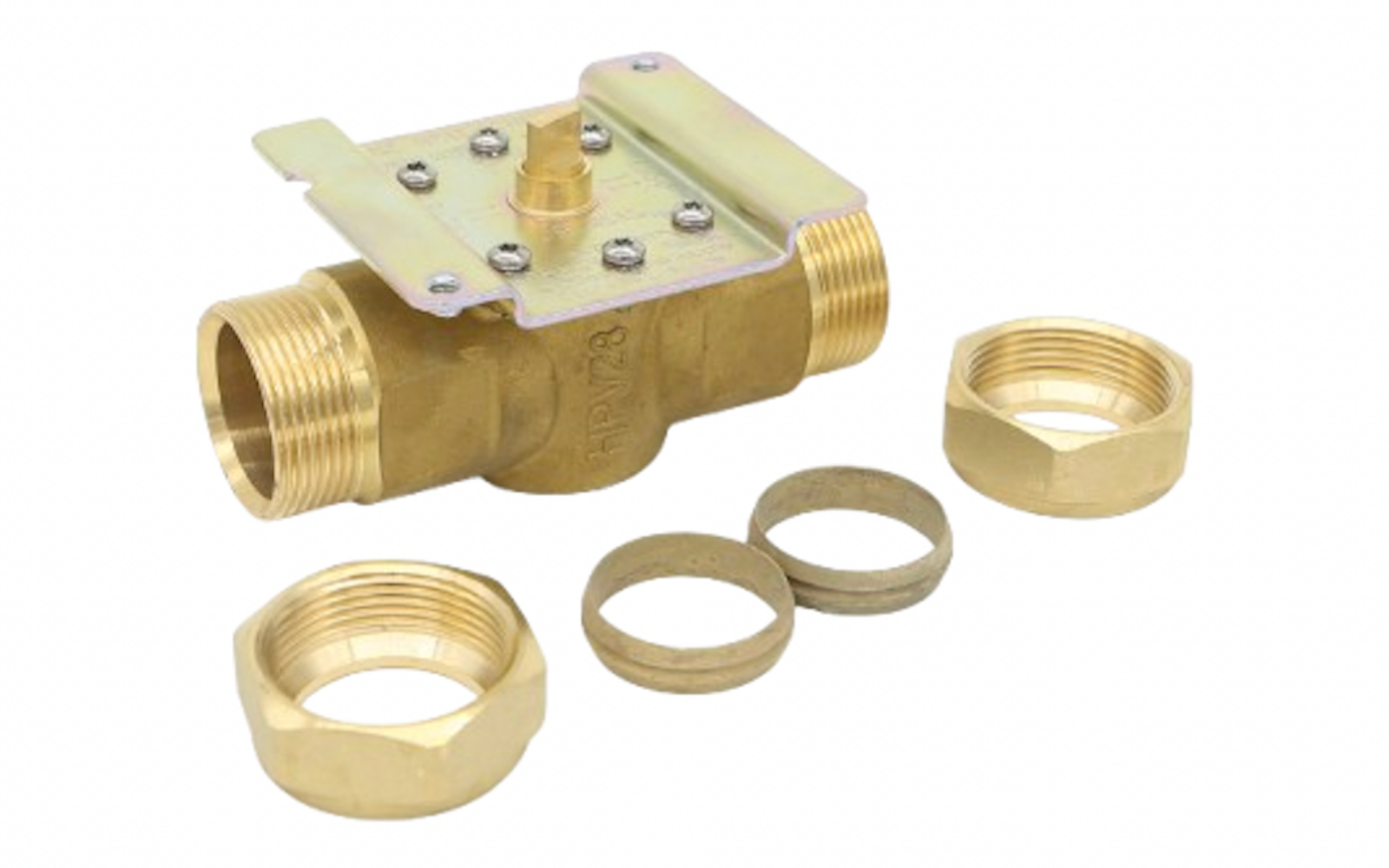

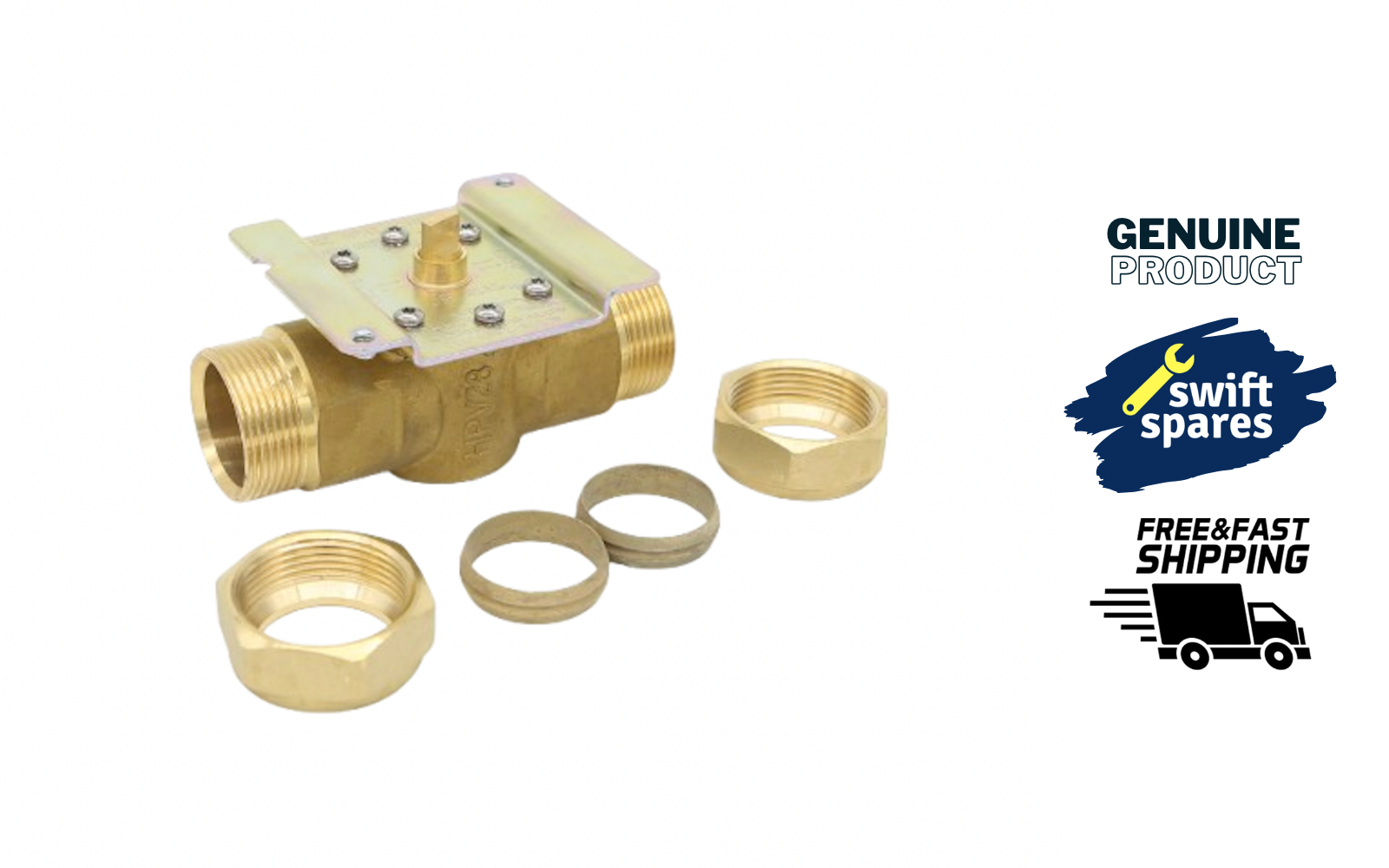

Danfoss HPV28 2 port valve body 28 mm, H series shoe valves are available in 2 port and 3 port versions in a wide range of sizes for both copper and iron pipework. For ease of installation and service ability, the actuator is assembled with the valve body on site, using the screws provided. The valve bodies have a high capacity and use positive shut off shoes. The actuator comes with auxiliary switches and industry standard cabling. There is a lever for manually opening the valve and which can be useful when the system is being filled.
- Internal compression
- Valve body only
- Shoe type valve
- Coefficient of flow 15.0 m³/hr
- 0.7 bar maximum differential pressure
- 10 bar maximum working pressure
- 95°C maximum operating temperature
- IP40 Rating
