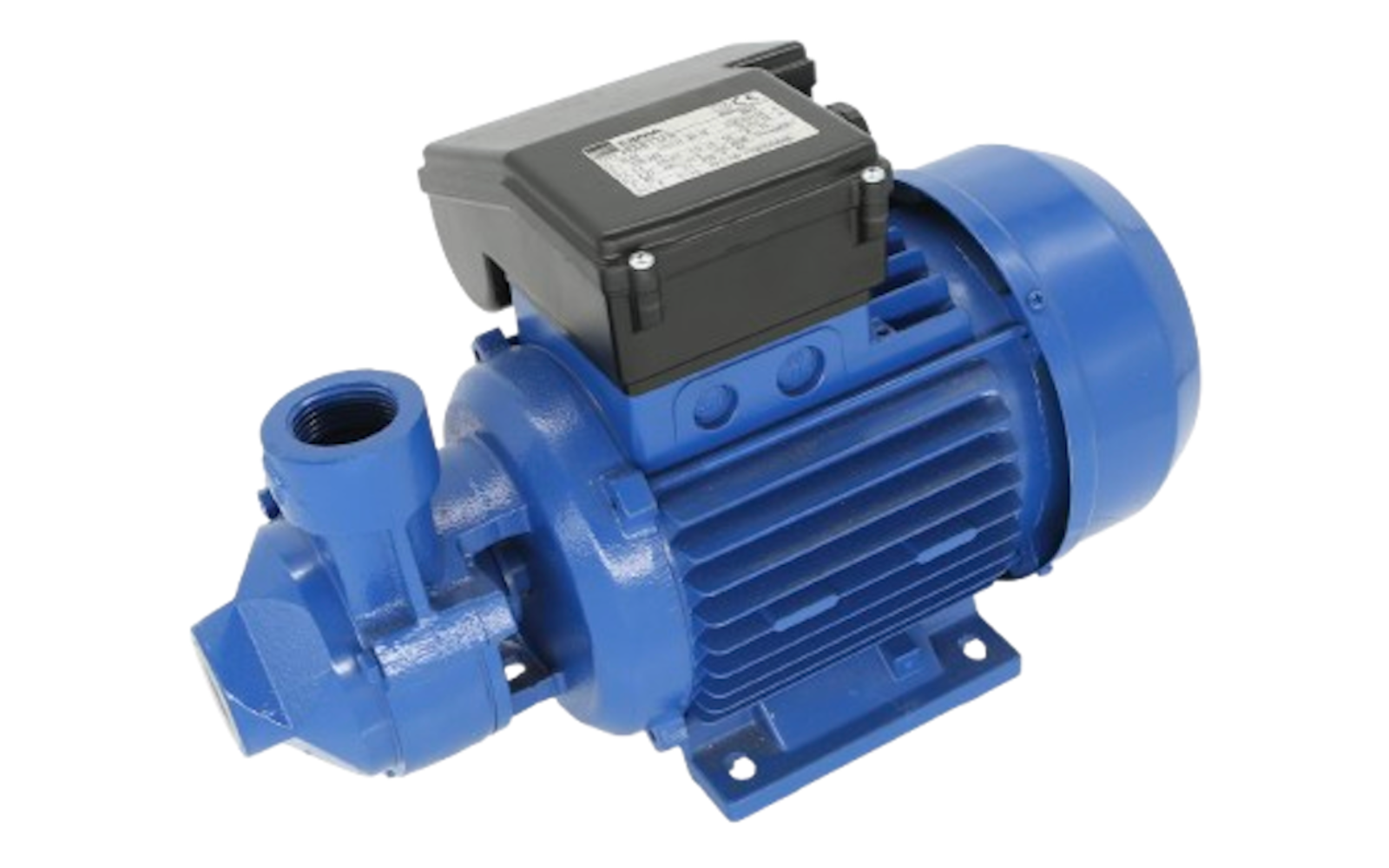

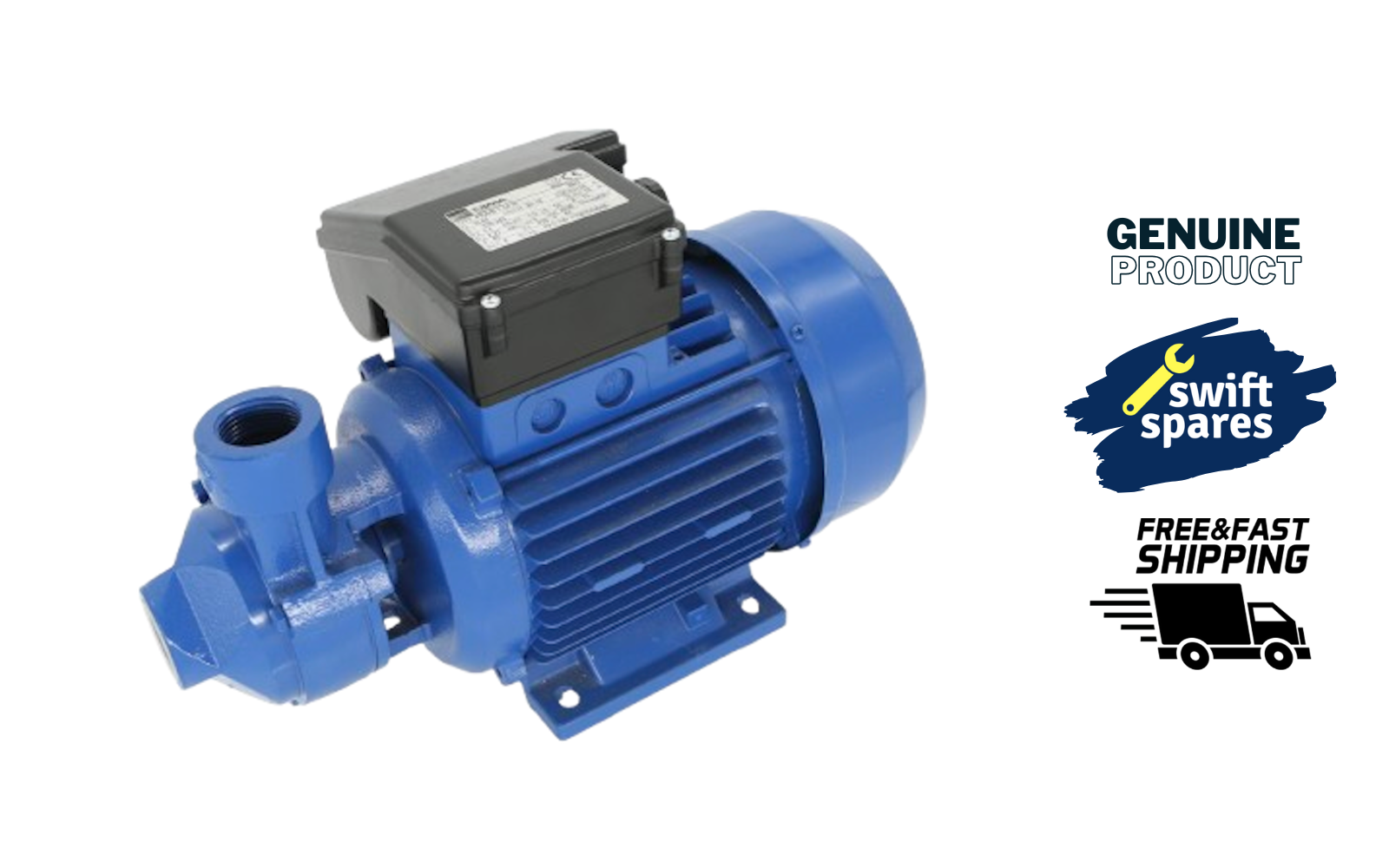

Ebara PRA/B 1.50 M Peripheral Pump 30V 1150150000B

The silent PRA/B 1.50 M cast iron peripheral pump from Ebara is suitable for domestic uses, boilers power supply and booster units, as well as autoclave groups.

Technical

• Maximum working pressure:
  – 12 bar
• Maximum temperature of the liquid: 80° C
• G1 discharge connection
• G1 suction connection
• Asynchronous motor, 2 poles
• Class of insulation F
• IP44 Protection degree
• 230V ± 10% 50Hz single phase voltage
• Permanent capacitor inserted and thermo-amperometric protection with automatic rearm incorporated for the single phase motor

Materials

• Cast iron pump body and support
• Shaft in AISI 303
• Brass impeller
• Mechanical seal in Carbon/Ceramic/NB
