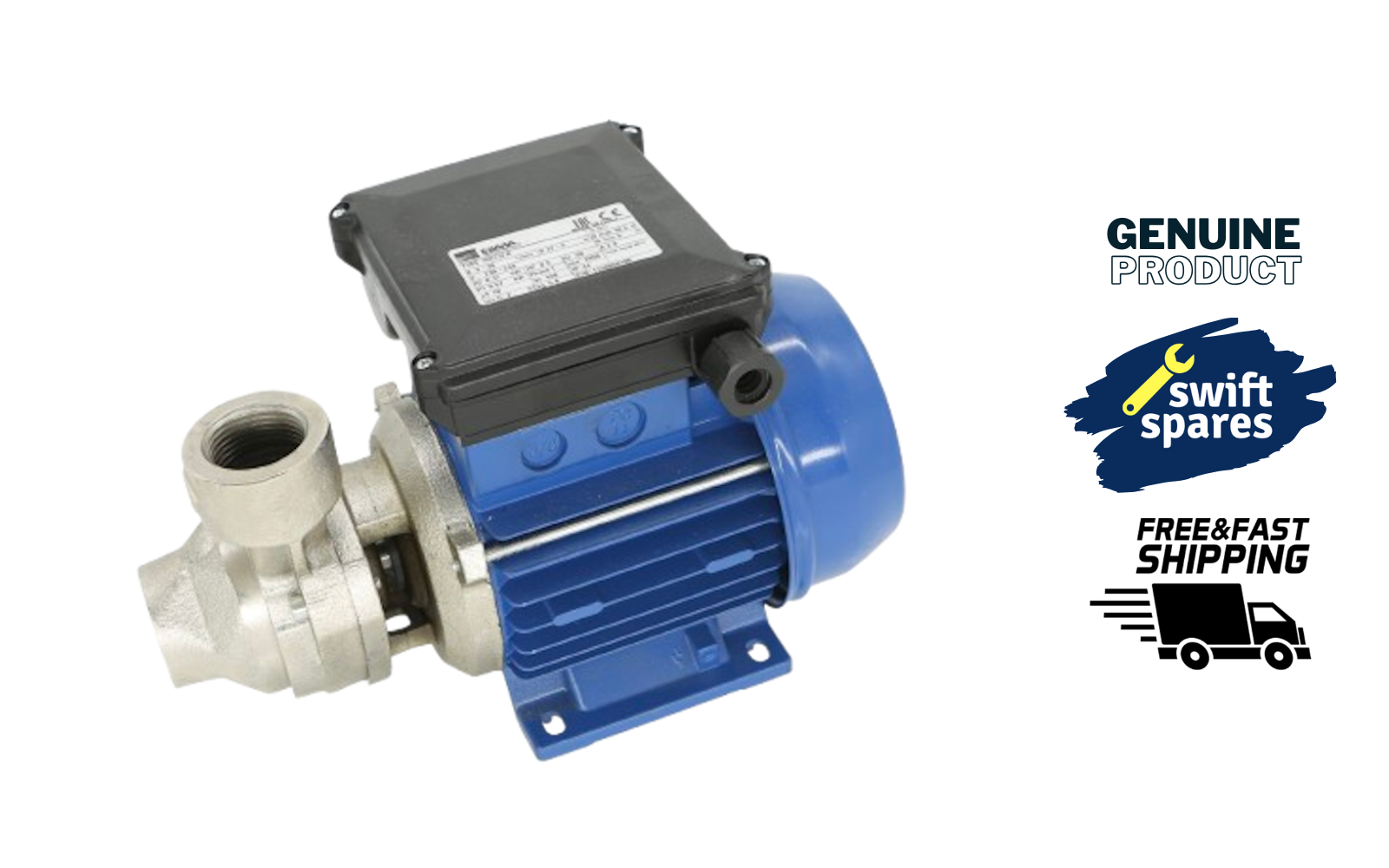

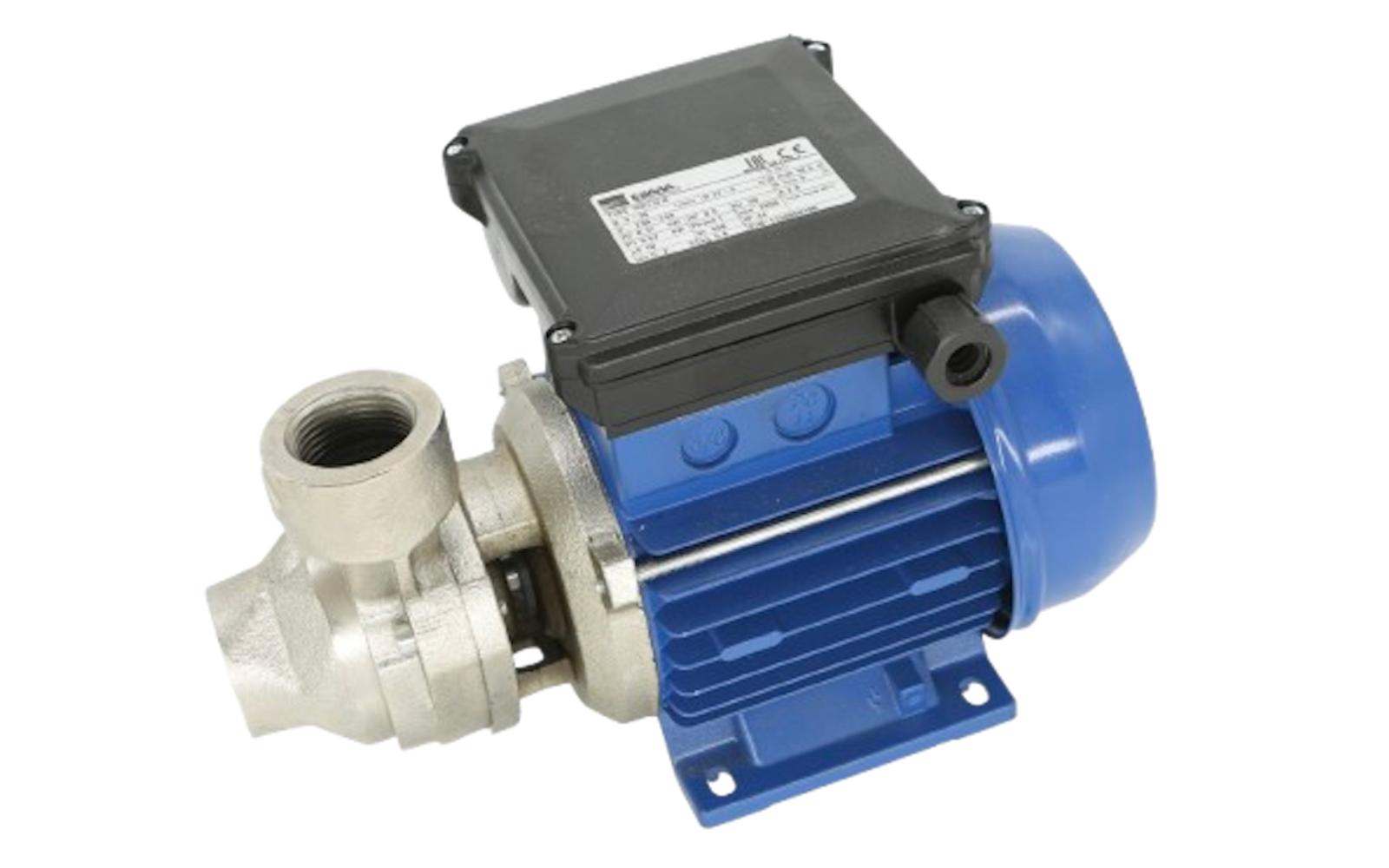

EBARA PRN 0.50 M ELECTRIC DEVICE PUMP 0,50 M 1150050100
EBARA PRN 0.50 M ELECTRIC DEVICE PUMP 0,50 M 1150050100
Regular price
£229.99 GBP
Regular price
Sale price
£229.99 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Please note: Item is new and unused but missing original packaging. Sold as photographed.
PRA-PRN
Peripheral
PERIPHERAL ELECTRIC PUMPS
in cast iron
APPLICATIONS
o Suitable for domestic uses
o Boilers power supply and booster units
TECHNICAL DETAILS
o They're silent
o Practical
o Easy to transport
o Available also in the nickel-plated version (PRN 0.50 model)
PUMP TECHNICAL DATA
o Maximum working pressure:
- 6 bar for PRA 0.50
- 7.5 bar for PRA 0.80
- 12 bar for the rest of the range
o Maximum temperature of the liquid: 80°C
o G1 discharge connection
o G1 suction connection
MOTOR TECHNICAL DATA
o High efficiency IE2 motors starting from 0,75kW
o Asynchronous motor, 2 poles
o Class of insulation F
o IP44 Protection degree
o 230V±10%, 50Hz single phase voltage, 230/400V±10%, 50Hz three phase voltage
o Permanent capacitor inserted and thermo-amperometric protection with automatic rearm incorporated for the single phase motor
o Protection under user's responsibility for the three phase version
MATERIALS
o Cast iron pump casing and bracket
o Shaft in AVZ Steel for the PRA 0.50 model, in AISI 303 for the rest of the range
o Brass impeller
o Mechanical seal in Carbon/Ceramic/NBR
