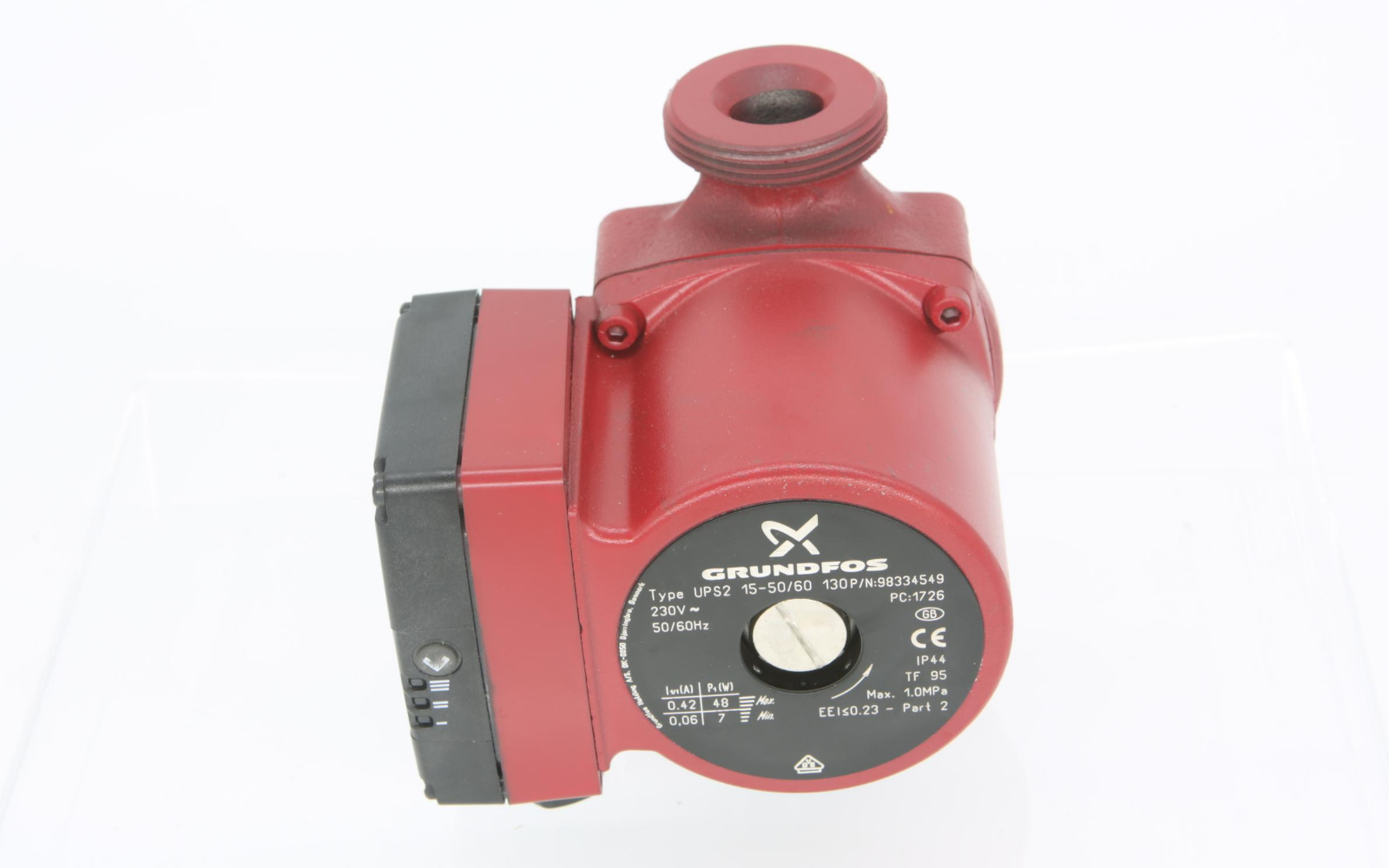

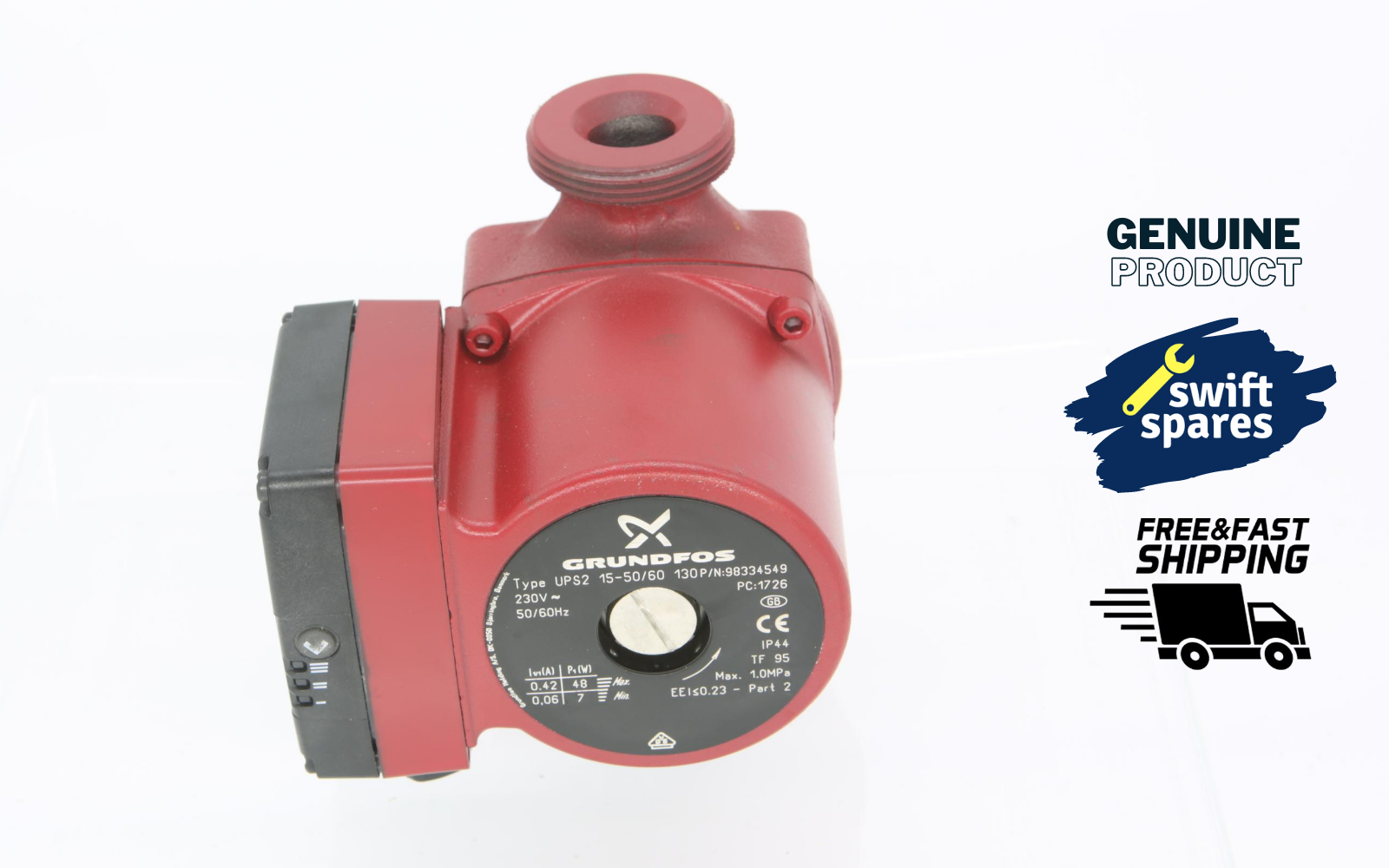

GRUNDFOS 98334549 SELECTRIC UPS2 15 - 50 / 60 130 CENTRAL HEATING PUMP

The Grundfos 98334549 UPS2 15-50/60 130 Pump is a high efficiency circulator pump which uses a permanent-magnet motor with a variable speed control which makes it compliant with ErP Directive 641/2009.

Product specification

Pump

• Head max: 60 dm
• TF Class: 95
• Max. operating pressure: 10 bar
• Pipe connection: G 1 1/2
• Pressure rating: PN 10
• Port-to-port length: 130mm

Liquid

• Pumped liquid: Water
• Temperature range: 2°C to 95°C
• Temperature during operation: 60°C
• Density: 983.2kg/m³

Electrical data

• Power input: 48W
• Mains frequency: 50Hz
• Rated voltage: 1x 230V
• Enclosure class: IP44
• Insulation class: F
