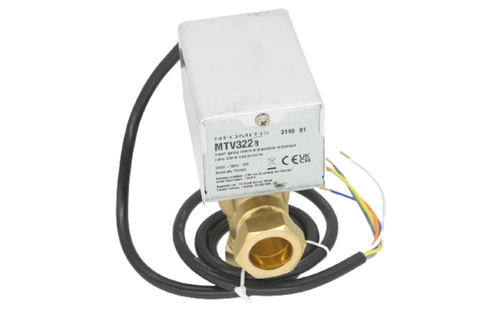

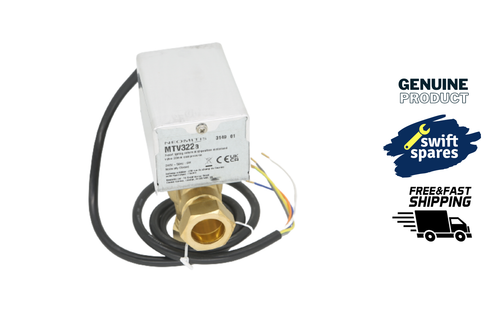

Neomitis MTV322a 22mm 3 Port Mid-Position Spring Return Motorised Valve - NEW

This Neomitis MTV322 motorised zone valve with 22mm compression connections manages and controls the flow of water in heating and domestic hot water systems. Three port MTV normally closed models have end switches for electrical control of the pump and/or boiler.

Product features

• 3 port, mid-position valve

• Quick and easy to install

• Standard compression fitting dimensions

• Metal housing

• Quiet operation

• Minimal power consumption

• Industry standard wiring

• Voltage 230V, 50Hz

• Power consumption 6W

• Cable length 1M

• Valve is normally closed when there is no power

• Maximum static pressure 10 bar

• Fluid temperature 5 to 80°C
