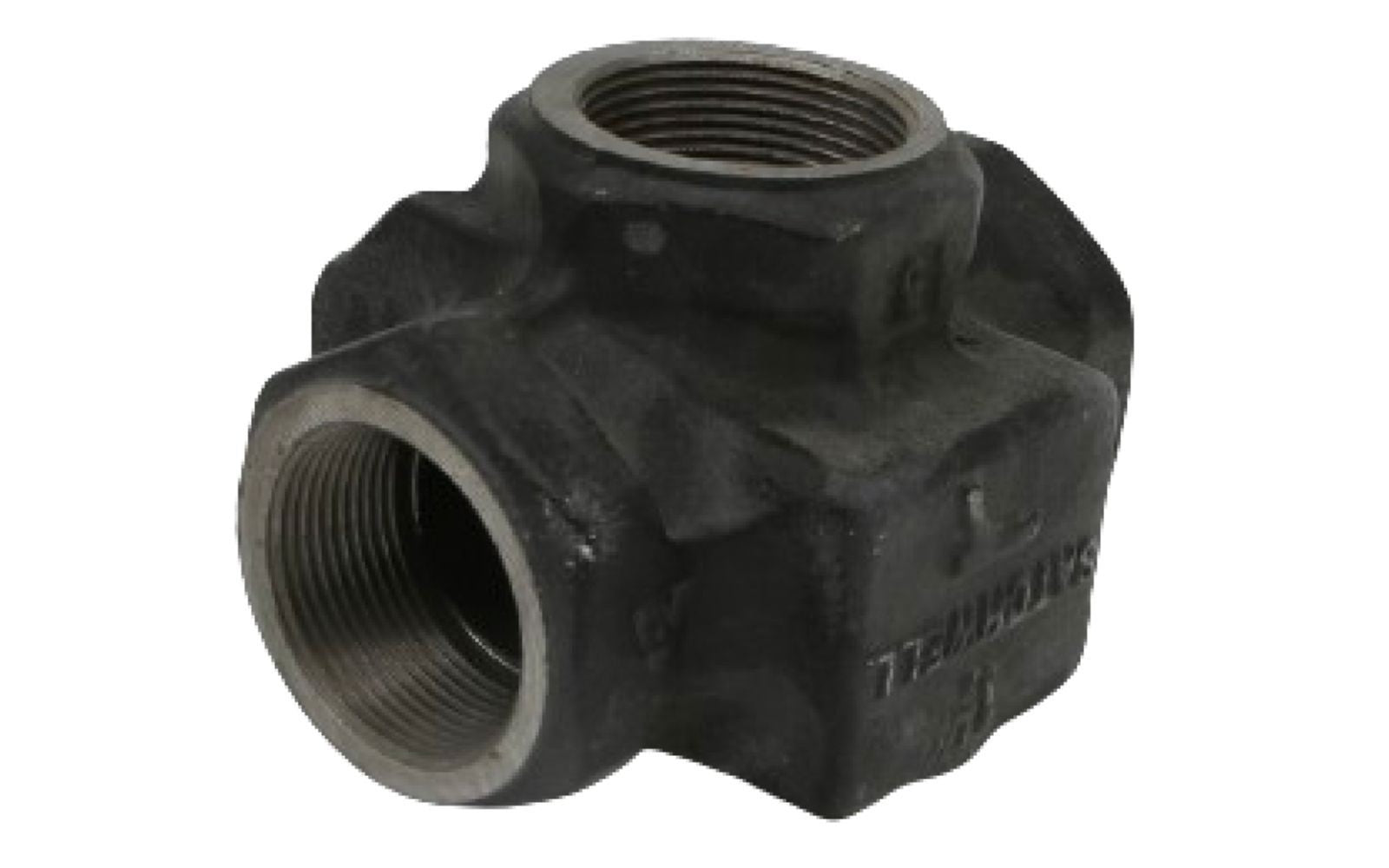

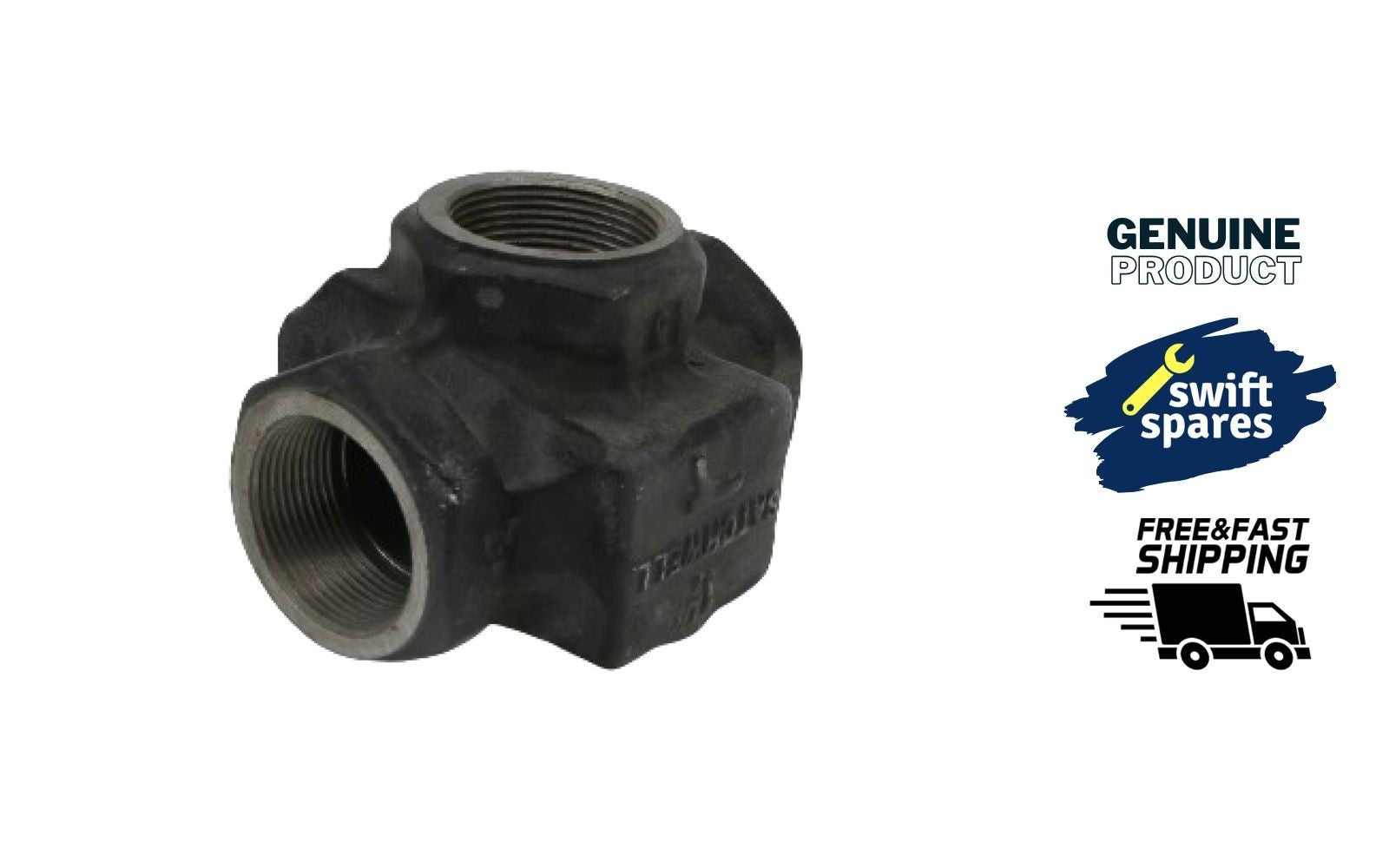

SATCHWELL MBX4601 3 PORT ROTARY VALVE 1 1/2IN BSP KV 20.0 - HAVC

The Schneider Electric MBX4601 is a 1 1 2 inch 3 port LPHW valve designed for control of low pressure hot water heating circuits. With a Cv rating of 20, it supports efficient water flow control for applications requiring diverting or mixing between circuits, helping maintain stable comfort and system performance in commercial and building services installations.

Product Features

• 3 port configuration for diverting or mixing duties in LPHW systems
• 1 1 2 inch valve size suited to higher flow heating circuits
• Cv20 flow coefficient for effective hydronic flow control
• Suitable for building services and commercial heating control applications
• Designed for integration with compatible actuators and control systems

Product Specifications

• Manufacturer – Satchwell Schneider
• Manufacturer Part Number (MPN) – MBX4601
• Dimensions / Size – 1 1 2 inch; 3 port
• Product Type – LPHW control valve; 3 port heating valve
• Typical Applications / Use Cases – Low pressure hot water heating circuits; diverting or mixing control in hydronic HVAC systems
• Technical Specifications – Cv 20
