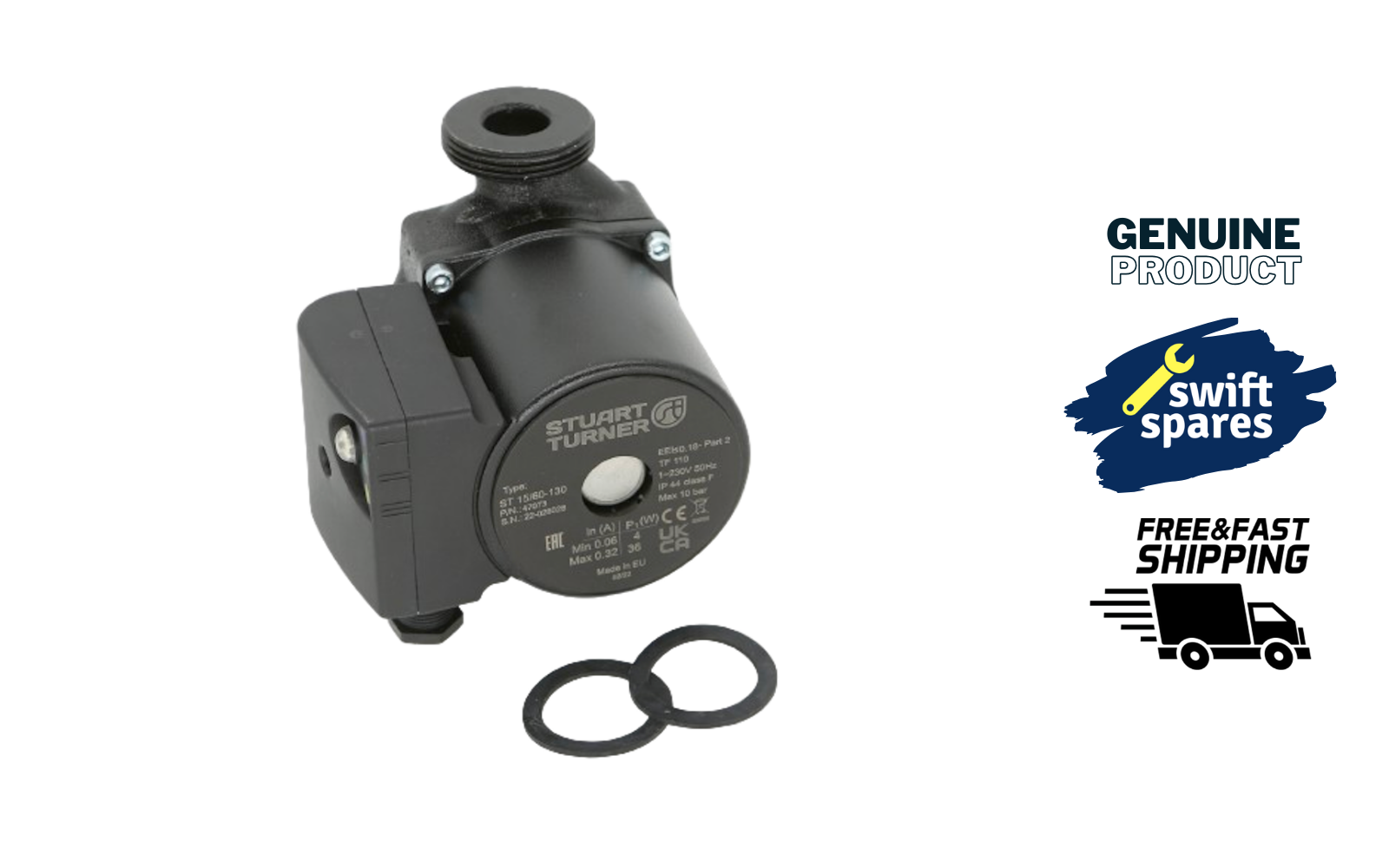

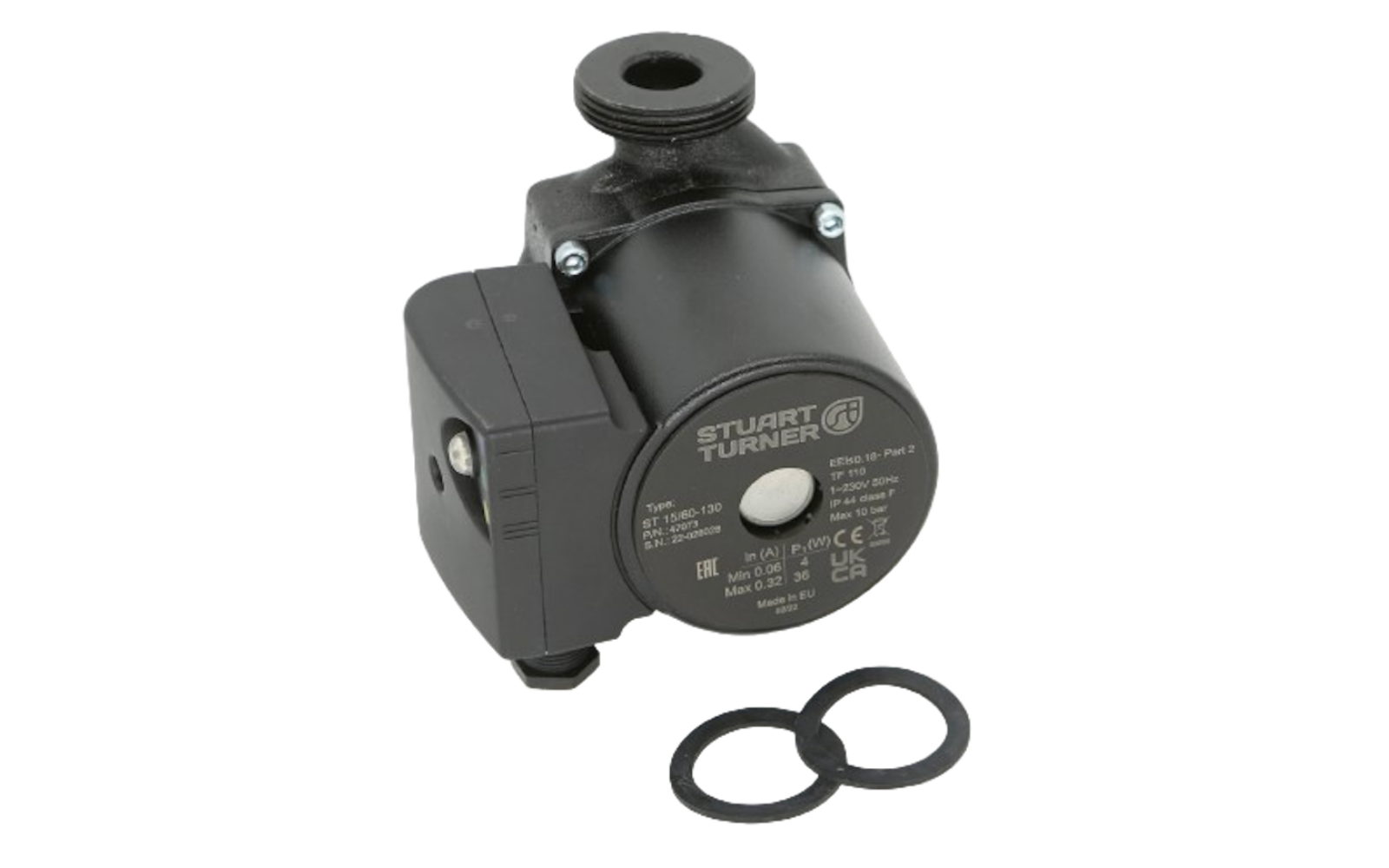

Stuart Turner ST 15/60 Central Heating Circulating Pump 47073
The Stuart ST 15/60 Circulator features the latest in high efficiency technology, offering an EEI rating of just 0.18 and proportional pressure control. For use in new systems or as a replacement unit, this cast iron Circulator is suitable for heating systems.
Replacement for pumps:
- Grundfos: UPS2 15/50-60
- Wilo: Yonos Pico 25/1/6
- Dab: Evosta 40/70 130
- CPL: CP60
- Grundfos: UPS3 15/65
Product Features:
ECM permanent magnet technology
Constant speed (3 settings)
Proportional pressure control
Installation:
The Stuart Turner Circulating Pump must be installed with the motor shaft in the horizontal plain, allowing the flow through the inlet/outlet to be either vertical or horizontal.
Note: The arrow on the pump case indicates the direction of flow.
Pump terminal box
If the pump is installed where access to the terminal box is limited it can be repositioned in the following manor
- Isolate pump from the water services using 1½ ” pump valves.
- Isolate power.
- With pump key remove four retaining screws.
- Pull motor/terminal box assembly away from pump body.
- Rotate motor terminal assembly box to desired position.
- Re-install using instructions above in reverse order ensuring sealing ‘O’-ring correctly located.
Before starting pump, open pump valves and bleed system through. Pressurise system to suit. Any trapped air in the pump may cause excessive noise when started. If it does not clear after 1-2 minutes of running, stop and start pump.
This Stuart Turner Circulating Pump has three different preset curves with proportional pressure, or three curves with constant power available by pressing the button on the terminal box cover consecutively.
The button illuminates to indicate the performance selected.
Blue – lowest power
Green – medium power
Yellow – highest power
ST15/60
