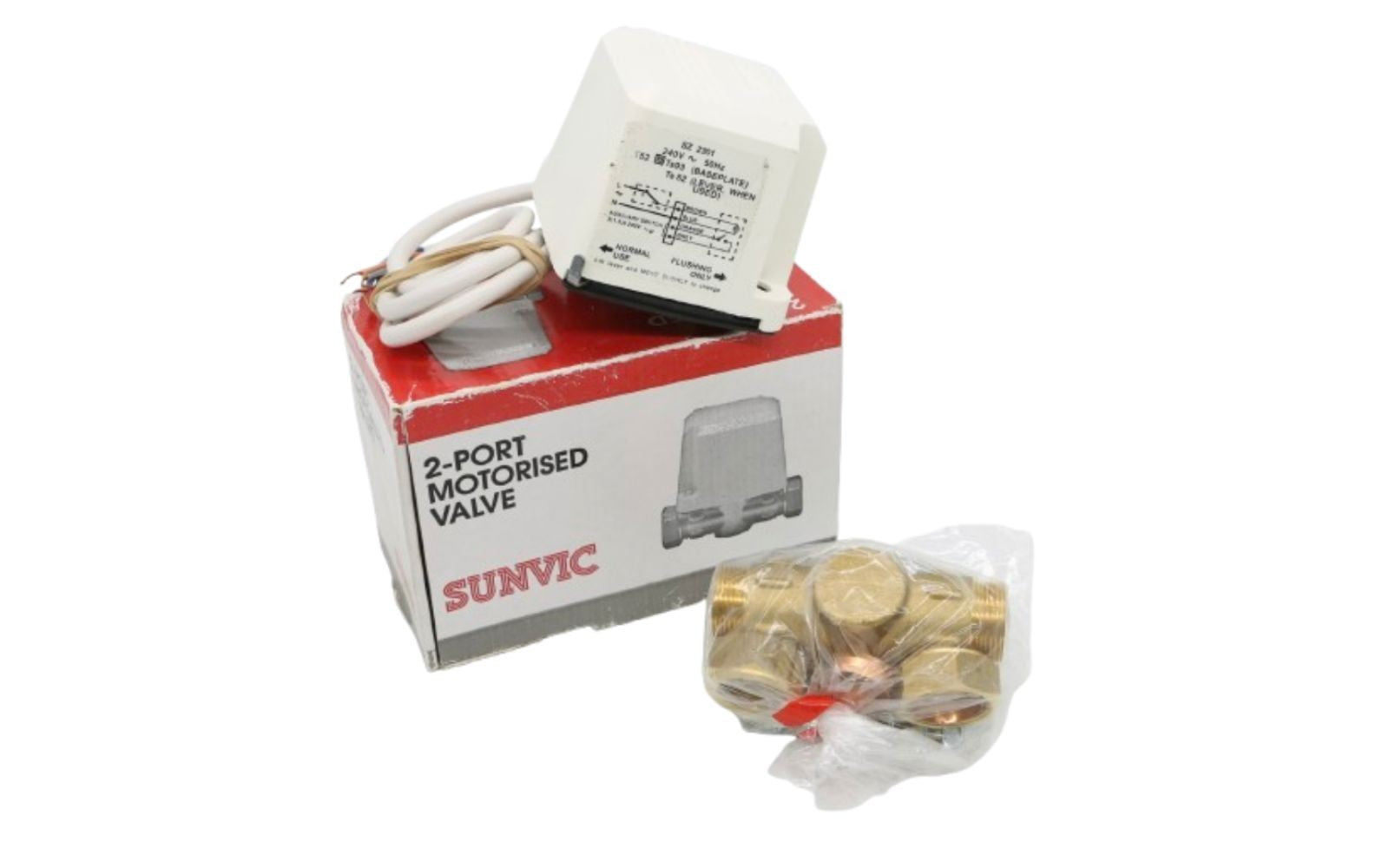

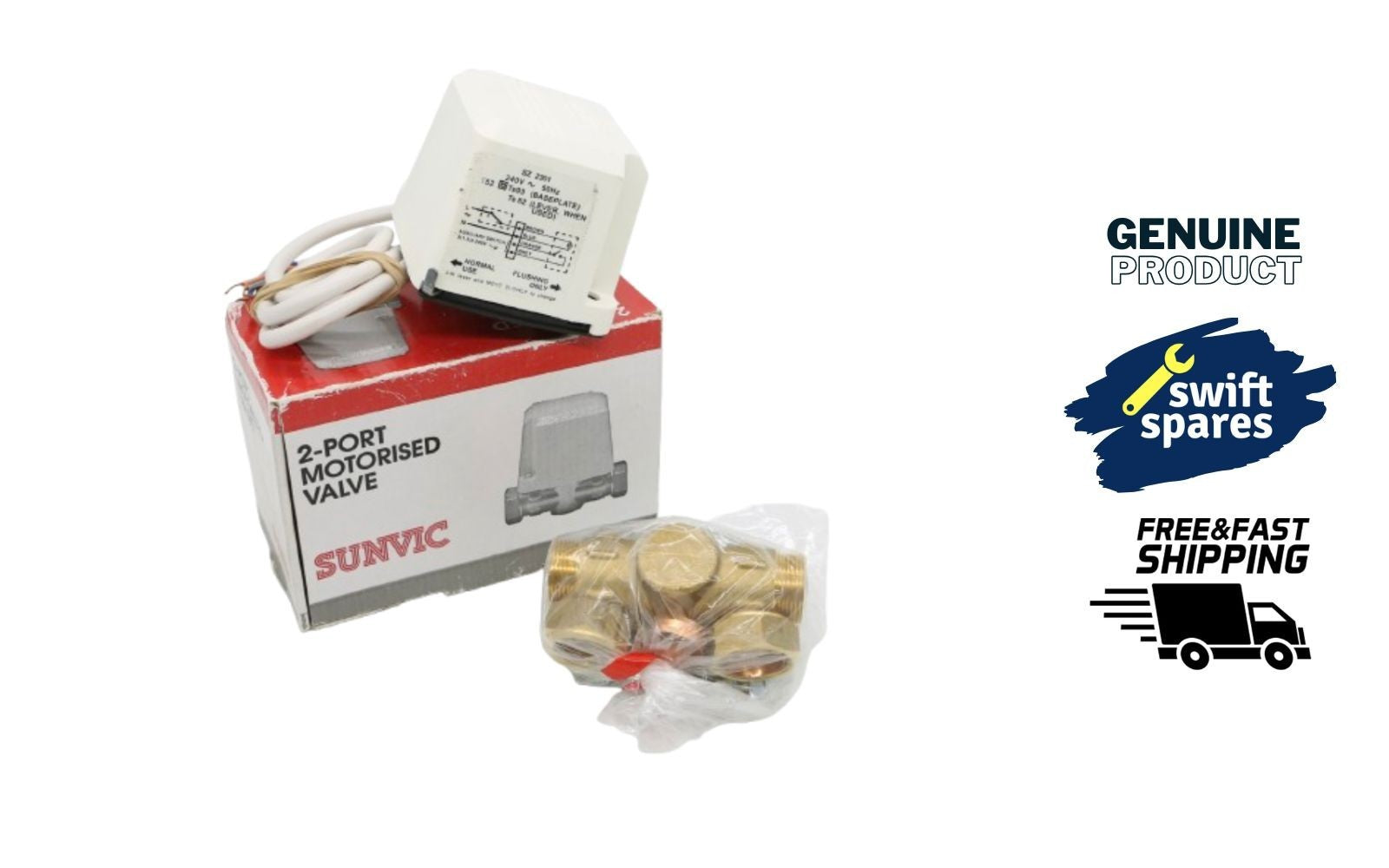

SUNVIC SZV2212 SZ2301 UNIVAL 2 PORT VALVE, Sz2301 / EML3454 Body
SUNVIC SZV2212 SZ2301 UNIVAL 2 PORT VALVE, Sz2301 / EML3454 Body
Regular price
£239.99 GBP
Regular price
Sale price
£239.99 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
SUNVIC SZV2212 SZ2301 UNIVAL 2 PORT VALVE, Sz2301 / EML3454 Body
Gross weight 1.353 Kg
Net weight 1.353 Kg
Auxiliary switch SPST
Closing time [sec] [Max] 20 “
Closure Method Paddle
Differential pressure [bar] [max] 0.7 bar
Flow Control Type Open/Close
Frequency [Hz] 50/60Hz
Kvs values [m³/h] 7.9 m³/h
Opening time [sec] [Max] 35 “
Operating temperature [°C] [max] 95 °C
Output relay rating inductive [A] 1A
Volume 2.075 Litre
Output relay rating resistive [A] 3 A
Supply voltage [V] AC 230 V
Tolerance ±15%
Valve Size and Connection 28mm external
Working pressure [bar] [Max] 10 bar
